Globe Data Center
7,454 sq. ft. of detailed data-centre BIM delivery combining LOD 400 architectural development with four floors of mechanical, electrical, IT and plumbing system modelling, clash coordination, documentation and specialist equipment families.
Project Visual7,454 Sq. Feet · Philippines
Project Overview
Coordinate Architecture, Building Services and IT Systems for a Detailed Data-Centre BIM Delivery.
IBS Projects' published Globe Data Center scope covers 7,454 sq. ft. and combines LOD 400 architectural wall development with mechanical, electrical, IT and plumbing system modelling across four floors. The project also includes schedules, detailed drawings, multidisciplinary clash coordination and special data and mechanical equipment family creation.
What IBS Projects Delivered
Detailed Architectural BIM, Four-Floor Services Modelling and Multidiscipline Coordination.
Architectural BIM
LOD 400 Architectural Model Development
The published project scope includes architectural model development with LOD 400 walls, providing detailed architectural context for coordination and the wider data-centre BIM environment.
Building Services + IT
Four Floors of Mechanical, Electrical, IT & Plumbing Modelling
Mechanical, electrical, IT and plumbing systems were modelled across four floors, bringing the building-services and data infrastructure into one coordinated digital project environment.
Coordination + Documentation
Clash Detection, Schedules & Detailed Drawings
The published delivery includes clash detection and coordination of all building-service systems together with schedules and detailed drawing creation for project documentation.BIM · Data Centre
Bring Data Infrastructure and Building Services into One Coordinated Model Environment.
Data-centre projects depend on dense technical systems and equipment. The Globe Data Center portfolio scope responds with detailed architectural context, four disciplines of systems modelling, project-specific equipment families and coordinated drawing outputs.
- 7,454 sq. ft. project scale
- LOD 400 architectural wall development
- Four floors of mechanical system modelling
- Four floors of electrical and IT system modelling
- Four floors of plumbing system modelling
- Clash detection and coordination of building-service systems

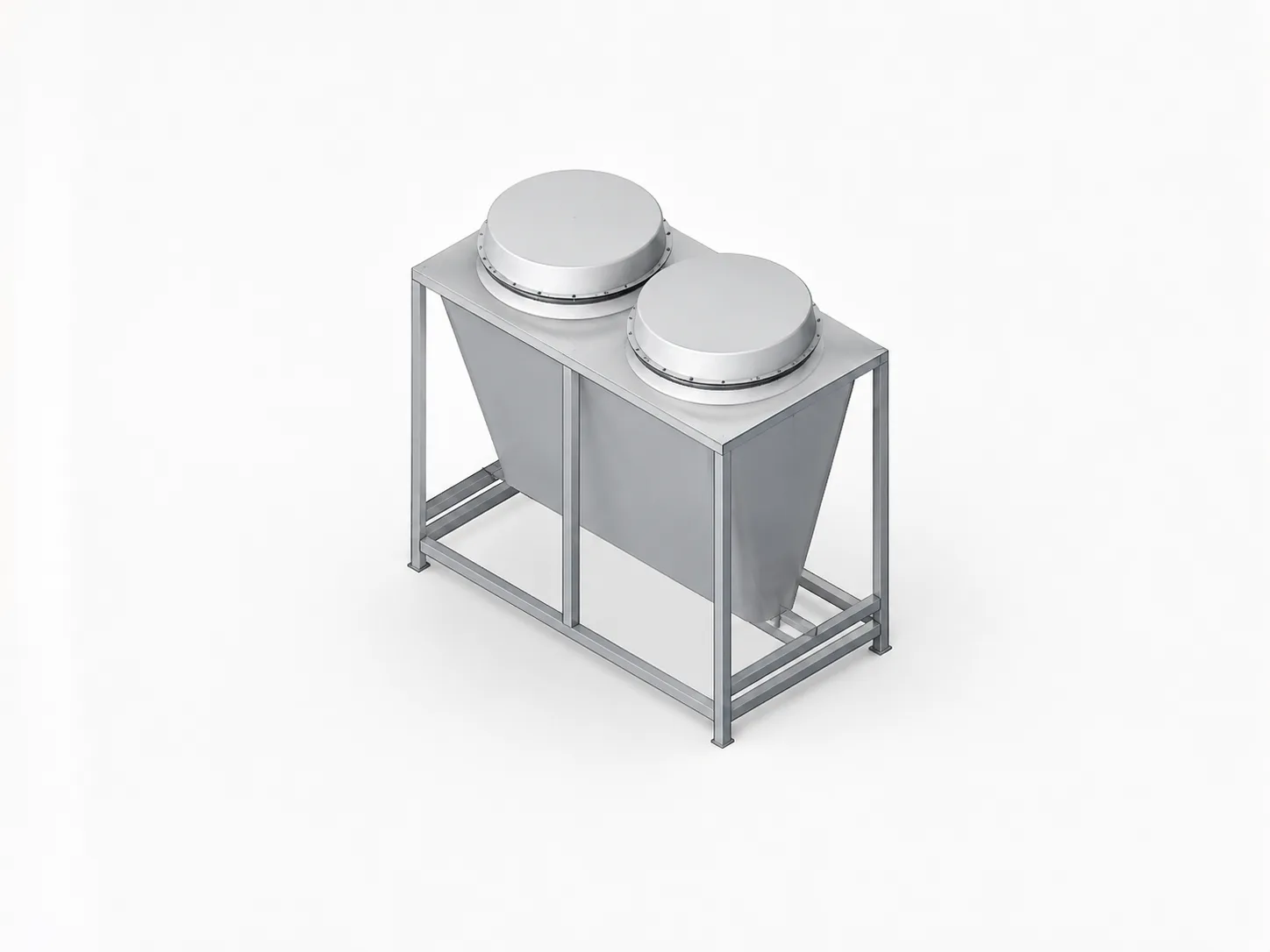

- Special data and mechanical equipment family creation
- Schedules and detailed drawing creation
Project Delivery
From Detailed Architectural Context to Coordinated Data-Centre Systems and Documentation.
- 01
Architectural Context
Develop the architectural model with LOD 400 wall information to establish detailed building geometry for coordination.
- 02
Multidiscipline Systems
Model mechanical, electrical, IT and plumbing systems across all four floors within the shared BIM environment.
- 03
Specialist Families
Create project-specific data and mechanical equipment families where standard content does not represent the required equipment.
- 04
Coordinate & Document
Run clash detection across building-service systems and produce schedules and detailed drawings from the coordinated information.
Project Gallery

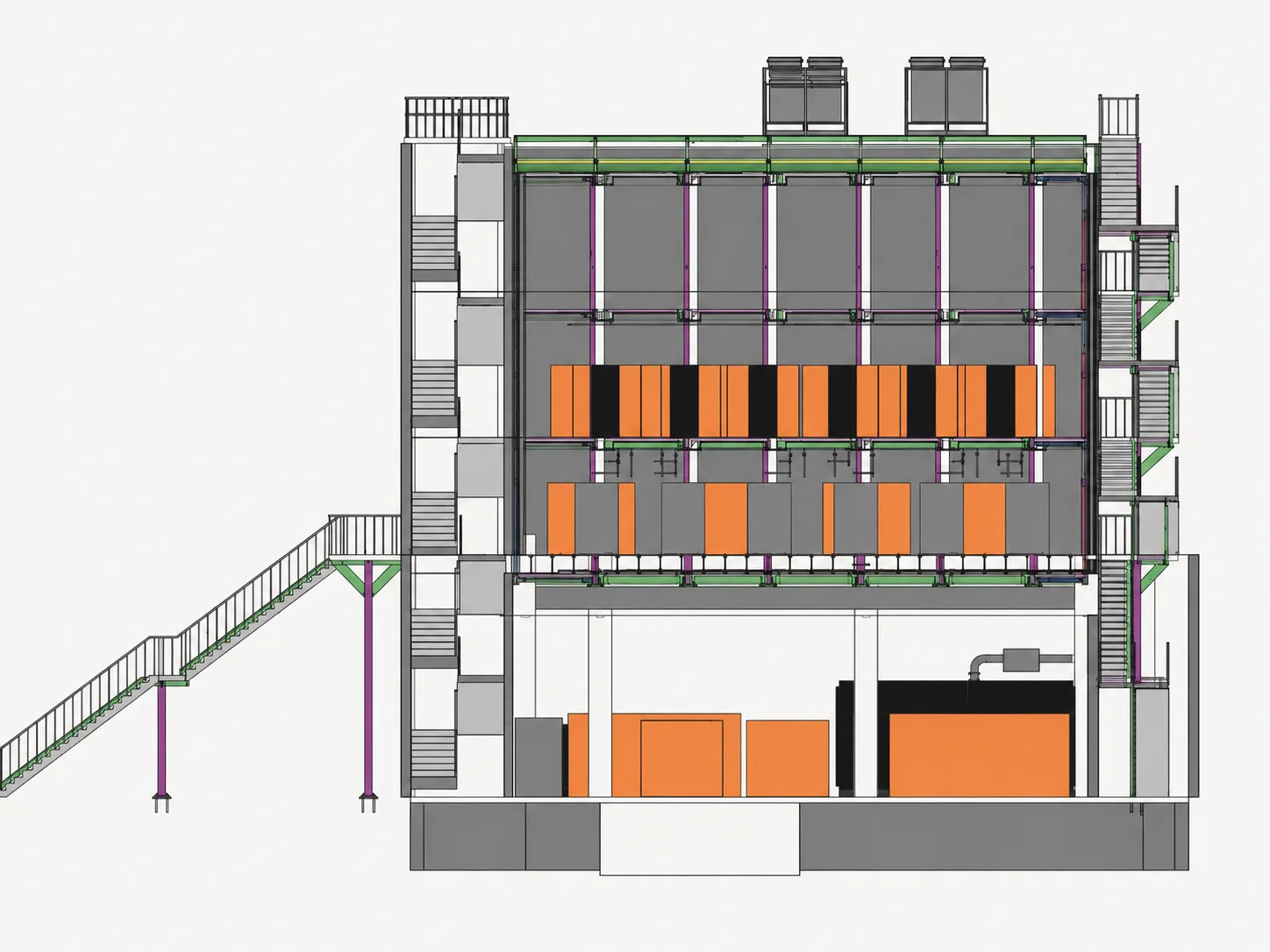

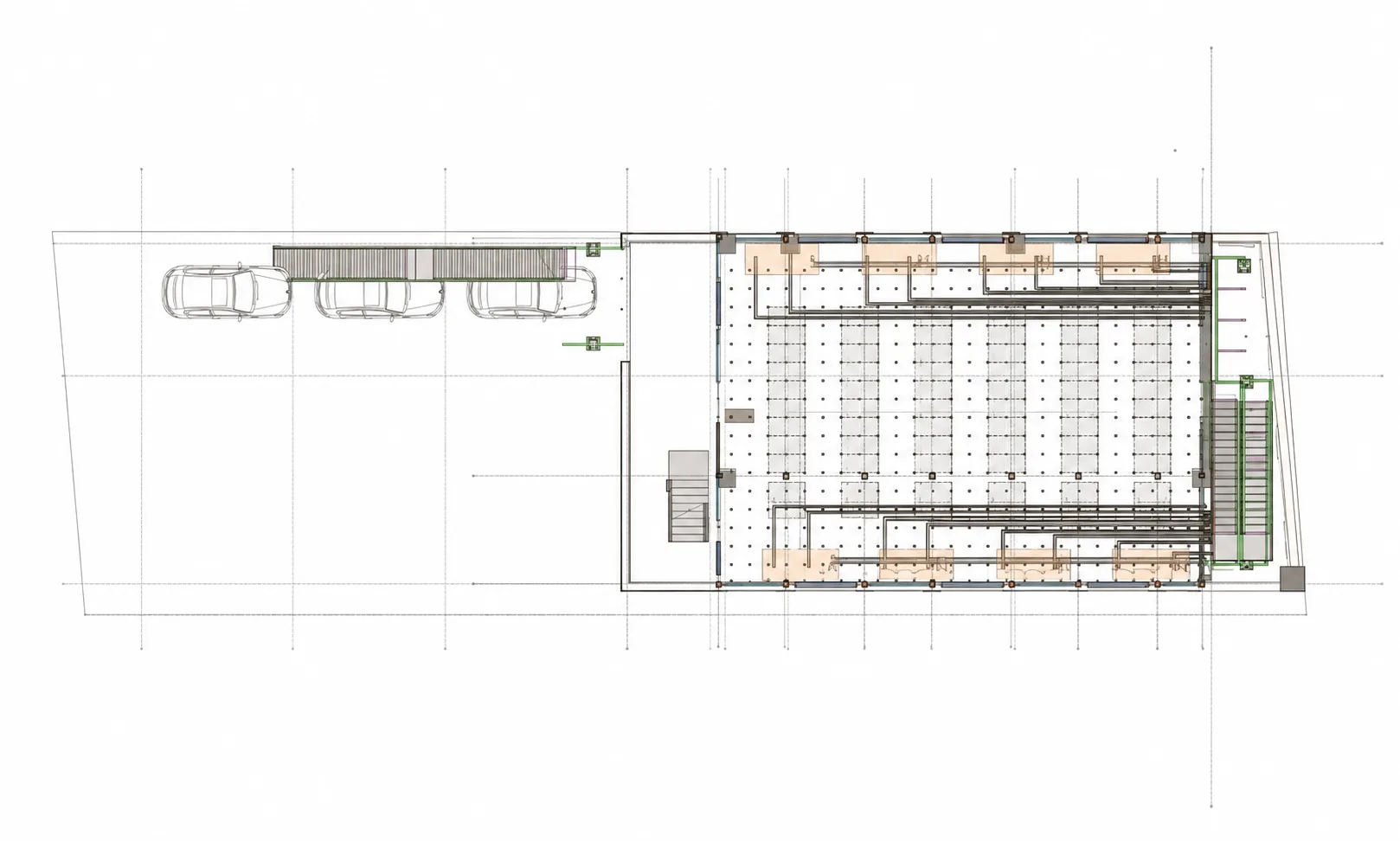

Selected Overall, Floor-Plan, Data-Hall, Section and Equipment-Family Views from Globe Data Center.
